Microsoft Entra ID

Entra (formerly Azure AD) does SAML through an Enterprise application with single sign-on set to SAML — not through an app registration, which is the OIDC path.

You need: Entra admin rights to create an enterprise application.

1. In AuthSec

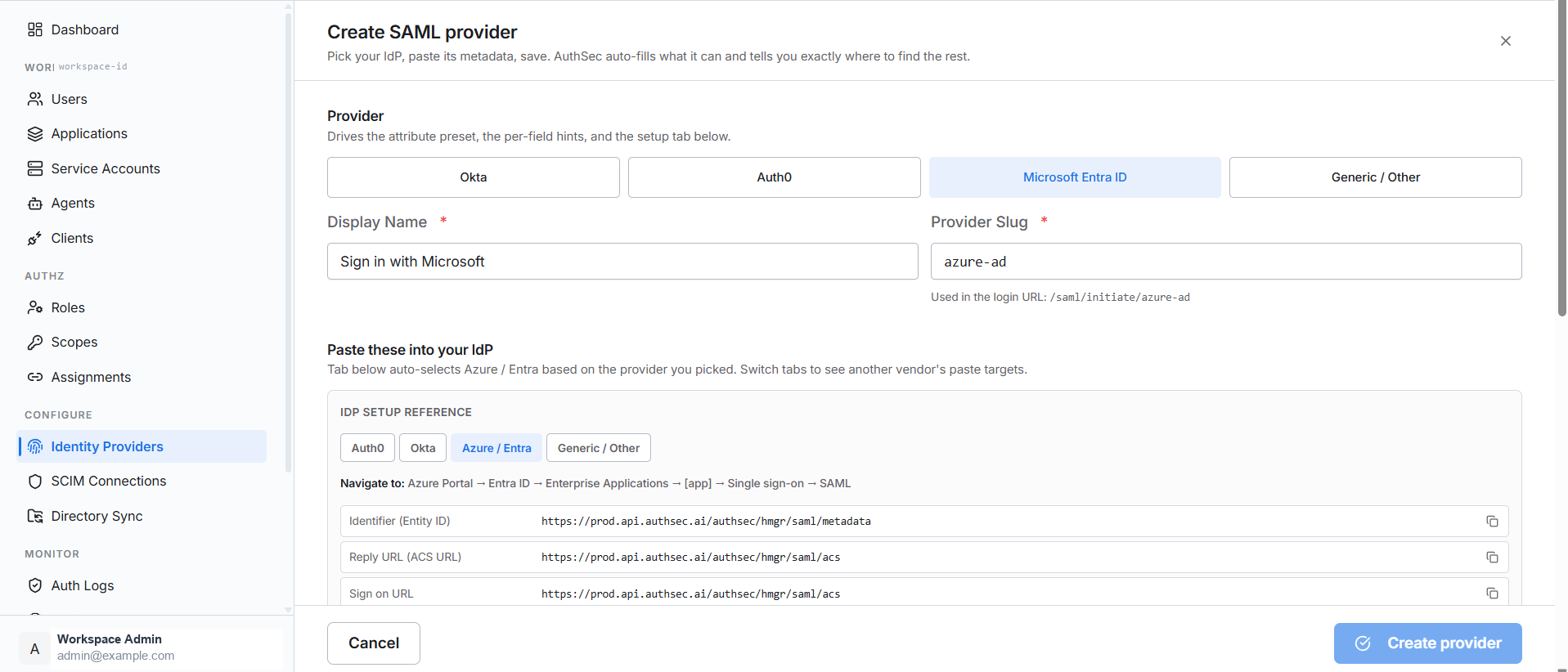

Identity Providers → + Add provider → SAML 2.0, then pick the Microsoft Entra ID preset.

2. In Entra

Navigate to Azure Portal → Entra ID → Enterprise Applications → [app] → Single sign-on → SAML.

Edit Basic SAML Configuration:

Entra field	Paste from AuthSec
Identifier (Entity ID)	Audience URI (SP Entity ID)
Reply URL (ACS URL)	Single sign-on URL
Sign on URL	Single sign-on URL

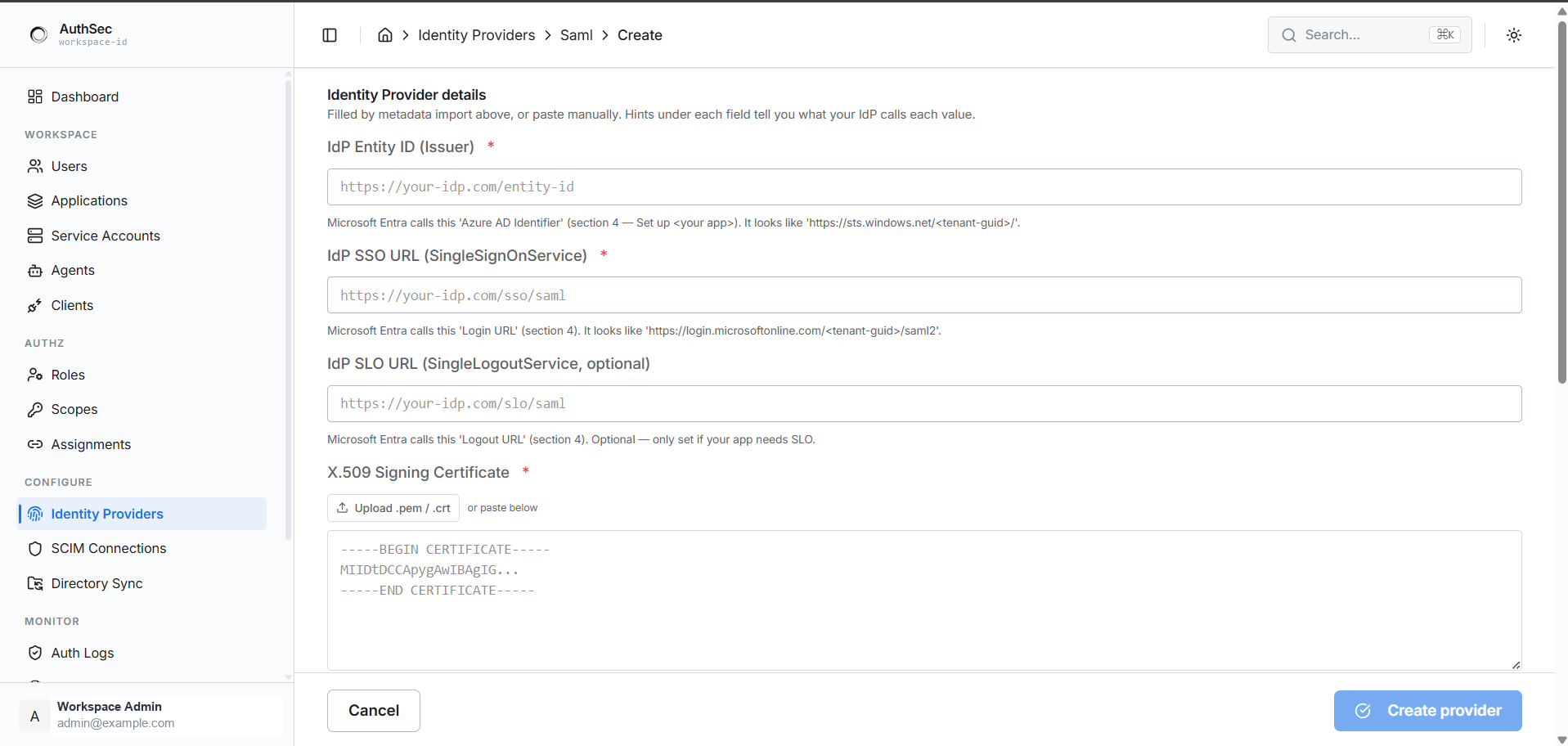

3. Back in AuthSec

Entra's SAML page is laid out in numbered sections, and AuthSec's hints point at them directly:

AuthSec field	Entra location
Import IdP metadata XML	Section 3 — App Federation Metadata URL, or download the Federation Metadata XML
IdP Entity ID (Issuer)	Section 4 — Azure AD Identifier, like https://sts.windows.net/<tenant-guid>/
IdP SSO URL	Section 4 — Login URL, like https://login.microsoftonline.com/<tenant-guid>/saml2
IdP SLO URL	Section 4 — Logout URL, optional
X.509 Signing Certificate	Section 3 — Certificate (Base64)

Downloading the Federation Metadata XML and using Apply metadata fills all of these at once.

4. Attributes

Entra emits long schema URIs rather than short names:

http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname

The Entra preset pre-fills these — this is the main reason to pick the right preset. Configure the matching claims under Section 2 — User Attributes & Claims, where the Unique User Identifier (Name ID) should be EmailAddress.

Click Create provider.

Gotchas

• Certificate (Base64), not Certificate (Raw). Raw is a binary .cer. Download Base64, open it in a text editor, and paste the whole PEM block.
• Assign users or groups. An enterprise application admits nobody until users are assigned under its Users and groups blade.
• Signing certificates expire, and Entra rolls them. Re-import the federation metadata after a rollover or sign-in breaks.
• Enterprise application, not app registration. Creating an app registration and looking for SAML there is a common wrong turn — that path is OIDC.
