Protect your MCP server

Time: ~15 minutes. You'll go from an unprotected MCP server to one where every tool call requires a valid OAuth token with the right scopes — and admins control access from the AuthSec dashboard without touching your code.

---

What you'll have at the end

BEFORE                                AFTER
──────                                ─────
POST /mcp tools/call  ──▶ runs 😱     POST /mcp (no token)      ──▶ 401 + how-to-auth
                                      POST /mcp (bad token)     ──▶ 401
anyone on the network                 POST /mcp (missing scope) ──▶ 403 for that tool
can call every tool                   POST /mcp (valid + scoped)──▶ tool runs ✅

                                      + your tools listed in the dashboard
                                      + admins assign per-tool permissions there
                                      + policy changes live in ~30s, no redeploy

How it works

The SDK wraps your MCP endpoint. Nothing reaches your tool code until three gates pass:

        agent request: POST /mcp  (Authorization: Bearer eyJ...)
                              │
            ┌─────────────────▼──────────────────┐
            │  authsec-sdk (mount_mcp)            │
            │                                     │
            │  GATE 1  token valid?               │──✘──▶ 401 + WWW-Authenticate
            │          (JWT signature + live      │       (tells the agent where
            │           introspection)            │        to get a token)
            │                                     │
            │  GATE 2  which tool is being        │
            │          called? (parses tools/call)│
            │                                     │
            │  GATE 3  do the token's scopes      │──✘──▶ 403 insufficient_scope
            │          cover that tool?           │
            │          (live policy from the      │
            │           dashboard, 30s cache)     │
            └─────────────────┬──────────────────┘
                              │ all pass
                              ▼
                      your tool code runs

Two things happen automatically at startup:

• PRM publishing — your server self-describes at /.well-known/oauth-protected-resource/mcp (RFC 9728) so agents can discover where to get tokens. You never write this endpoint.
• Manifest publishing — the SDK enumerates your tools and registers them with the dashboard, so admins see add_no, multiply_no, … by name and assign scopes to each.

---

Prerequisites

• An AuthSec workspace on https://mcpauthz.com
• Python ≥ 3.10 and pip install authsec-sdk fastapi uvicorn python-dotenv mcp
• A public URL for your server — agents and AuthSec must be able to reach it. For local development use an ngrok tunnel: ngrok http 8000 → gives you https://xxxx.ngrok-free.app.

---

Step 1 — Sign in to the dashboard

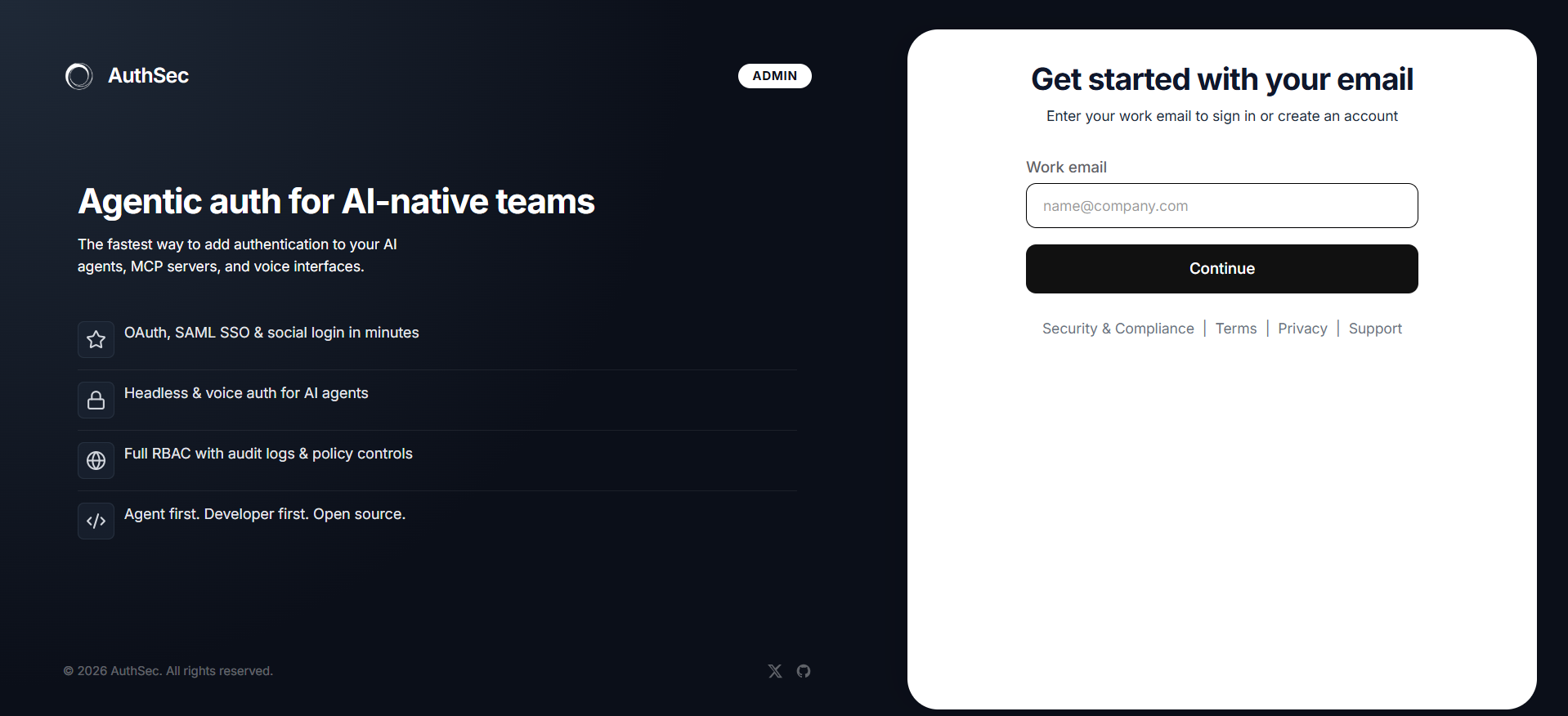

Go to https://mcpauthz.com and sign in (or create a workspace) with your work email:

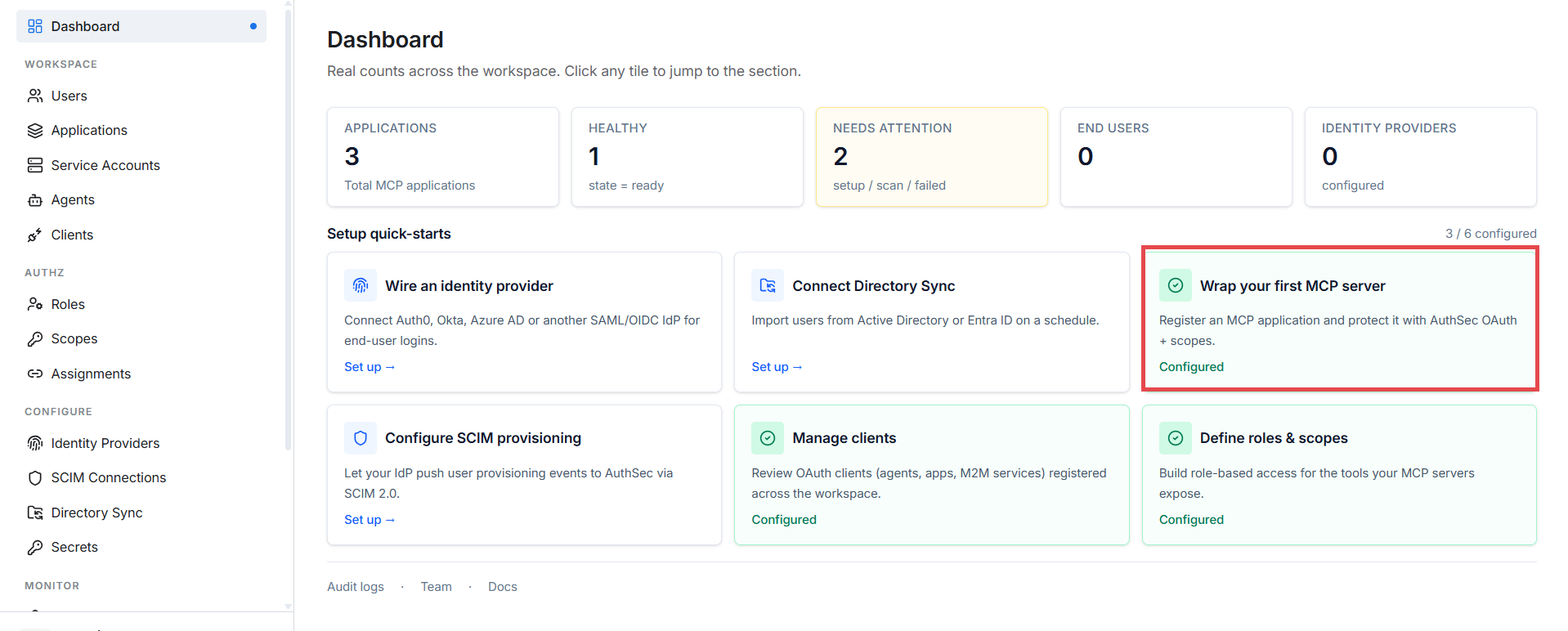

You land on the workspace dashboard. The tiles up top show your protected applications at a glance; the quick-start cards below track your setup progress — "Wrap your first MCP server" is the one this guide completes:

Dashboard vocabulary: AuthSec calls a protected MCP server an Application. In OAuth terms it's a resource server — same thing, friendlier name. The left sidebar groups everything you'll meet in these guides: Applications (your MCP servers), Service Accounts and Agents (things that call them — guides 2 and 3), Roles / Scopes / Assignments (who may call what).

Step 2 — Create the application

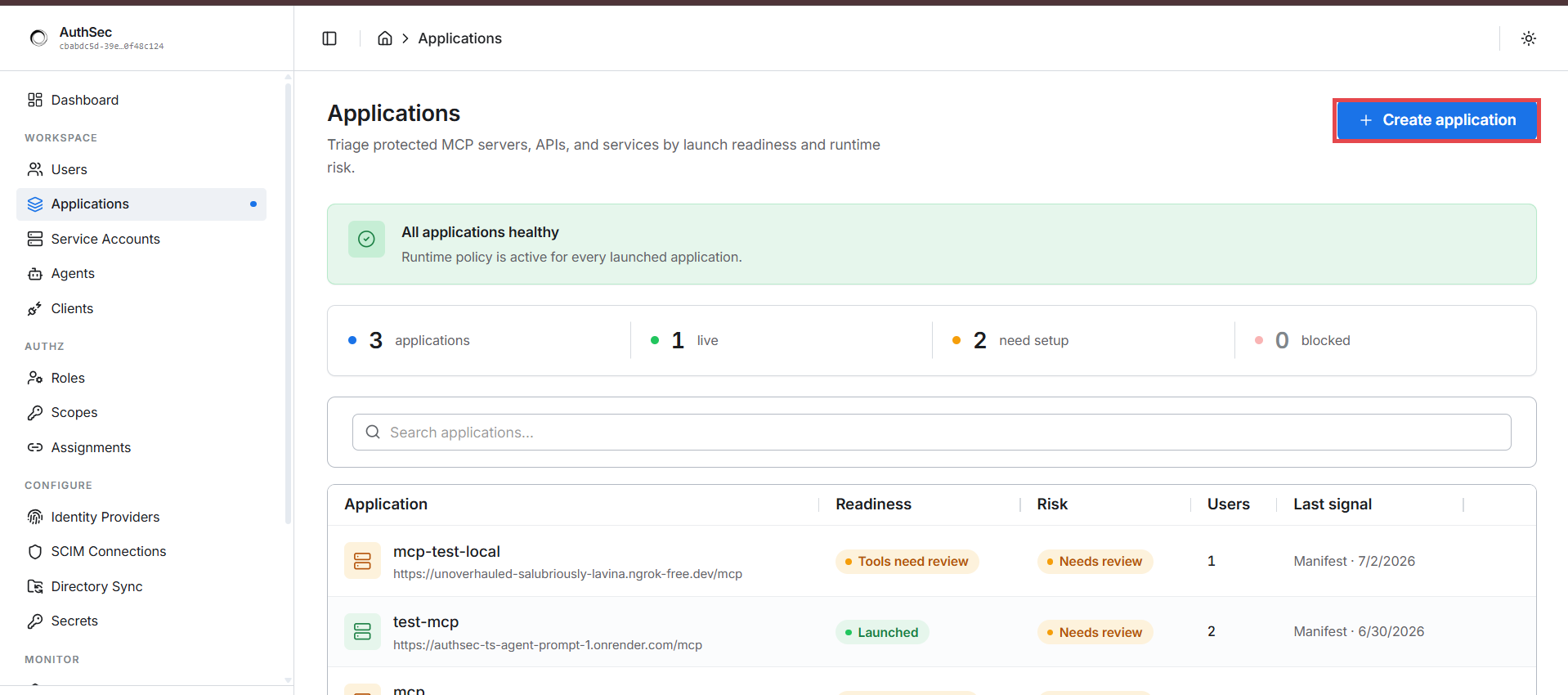

Open Applications in the sidebar. This page lists every protected MCP server in your workspace with its readiness and risk state. Click ＋ Create application:

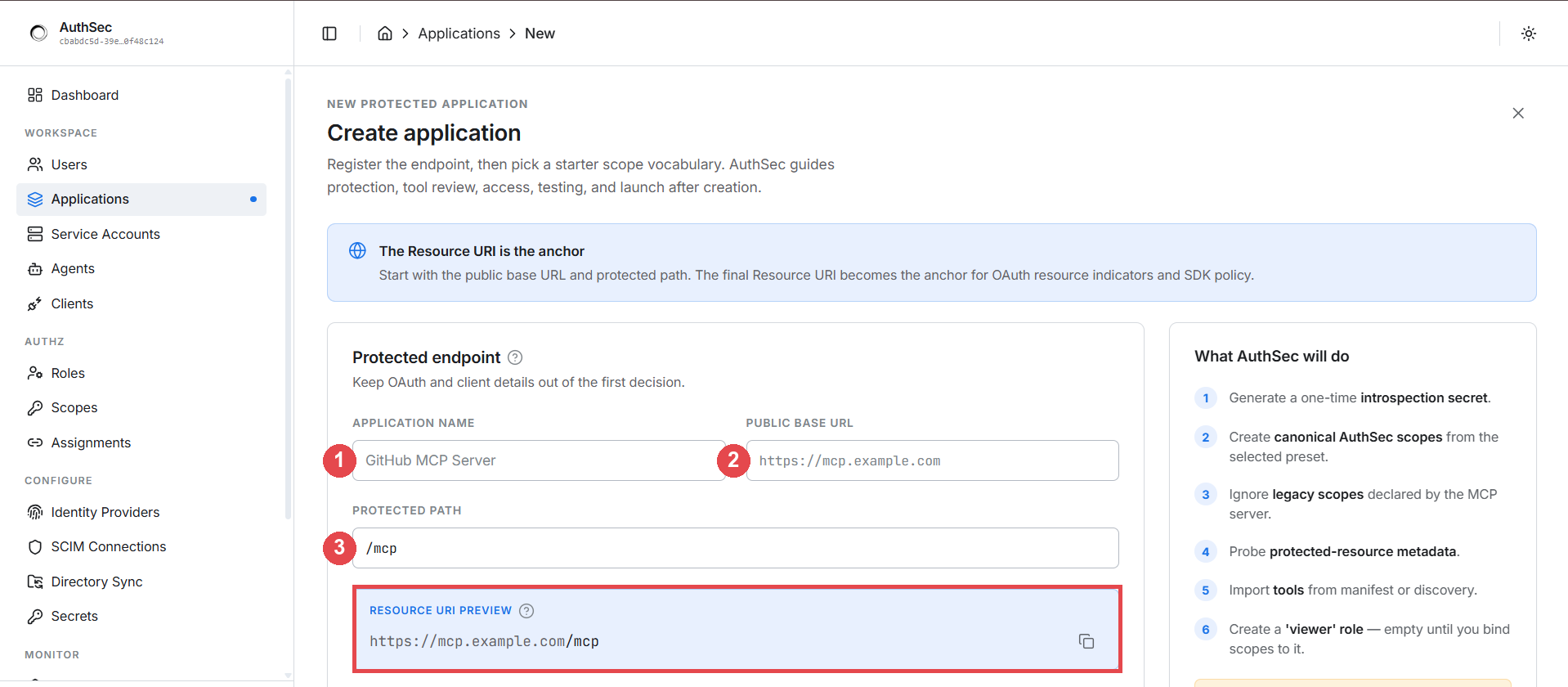

2a. Define the protected endpoint

Three fields:

• Application name — a human label, e.g. my-mcp-server
• Public base URL — where your server is reachable, e.g. https://xxxx.ngrok-free.app
• Protected path — the MCP endpoint path, typically /mcp

The Resource URI preview shows the combination (https://xxxx.ngrok-free.app/mcp). This URI is the anchor for everything — it must exactly match the URL agents will call (scheme, host, path), because tokens are bound to it (RFC 8707 resource indicators).

Note the "What AuthSec will do" panel on the right — when you submit, the dashboard automatically: generates a one-time introspection secret, creates canonical scopes from your chosen preset, probes your protected-resource metadata, imports your tools from the manifest, and creates an empty viewer role to hang scopes on. You'll meet each of these artifacts below.

2b. Pick the access vocabulary (scope preset)

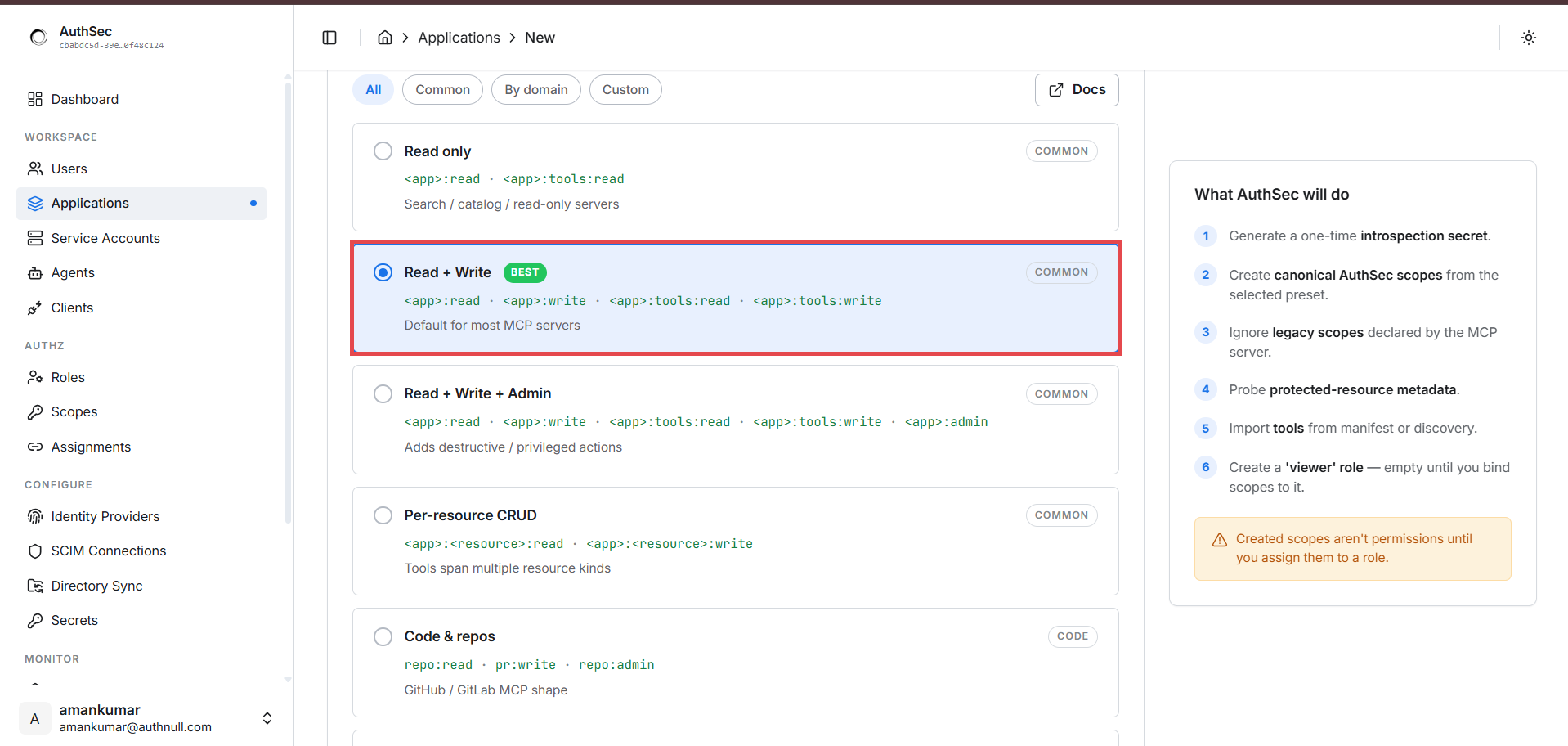

Scroll down to Access vocabulary — this generates the scope strings your server will use. Presets range from read-only to domain-specific shapes (database, RAG, code & repos):

For most MCP servers pick Read + Write (marked BEST). With an app namespace of my_mcp it generates four scopes:

my_mcp:read   my_mcp:write   my_mcp:tools:read   my_mcp:tools:write

⚠️ Note the warning in the sidebar: "Created scopes aren't permissions until you assign them to a role." Creating the vocabulary defines the words; steps 7–8 make them mean something.

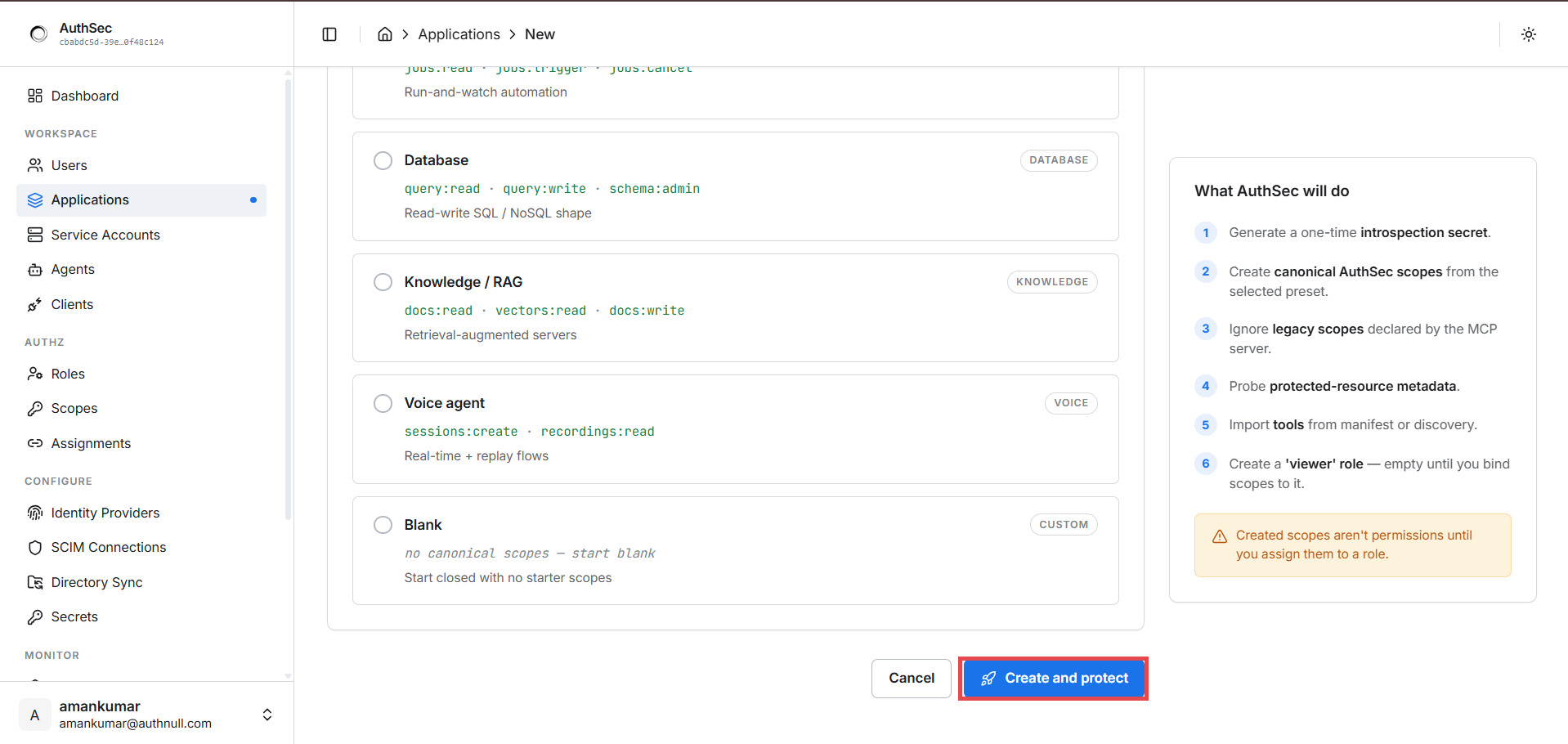

Click Create and protect:

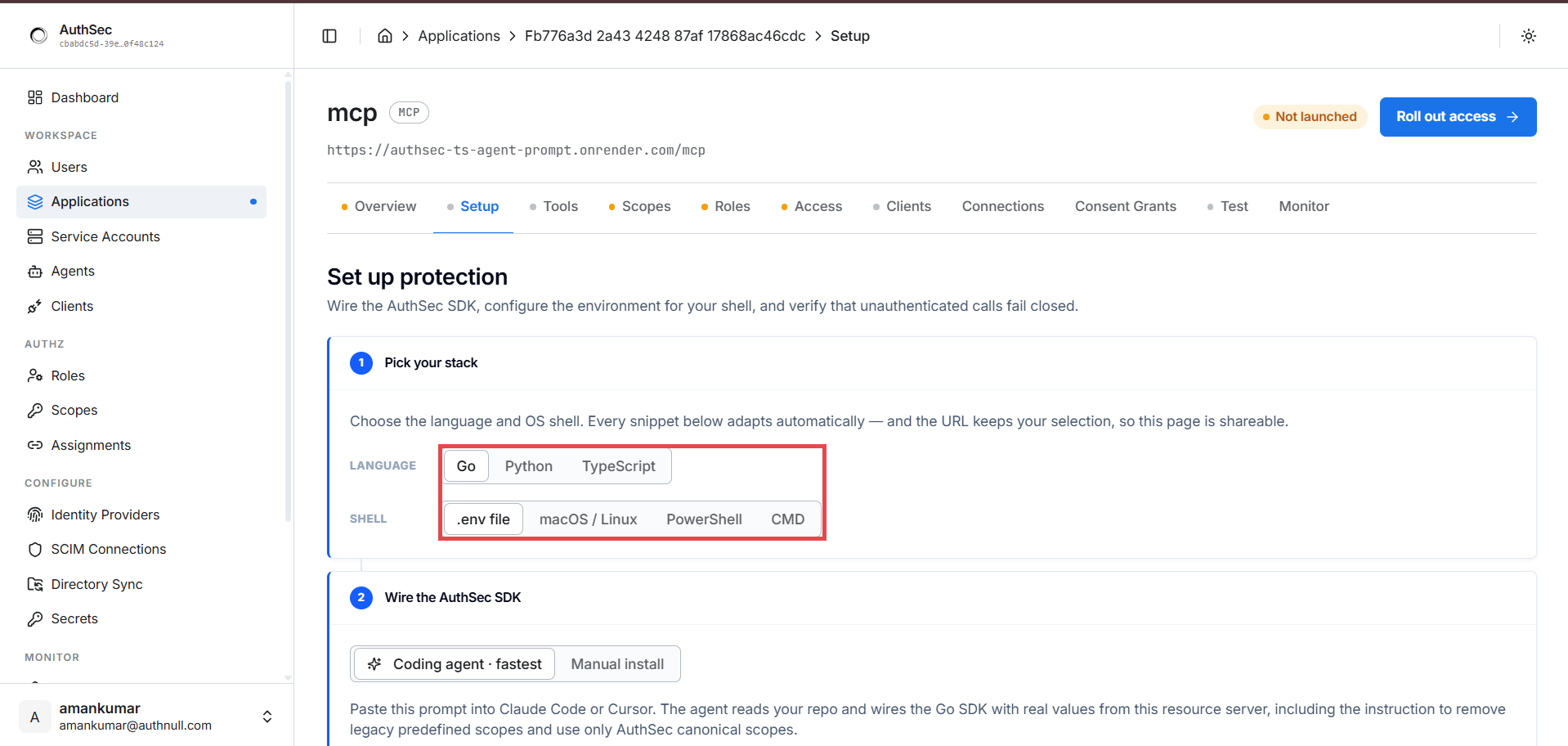

2c. Grab your credentials from the Setup tab

You land on the application's detail page. The tabs across the top — Overview · Setup · Tools · Scopes · Roles · Access · Clients · Test · Monitor — are mission control for this server. Open Setup:

Pick your stack (Python, and .env file as the shell format) — the page renders copy-paste-ready environment values for this exact application, including the introspection credentials:

🔑 The introspection secret is shown once at creation. Copy it now. If you lose it, rotate it from this page. (Secrets are blurred in the image above — never commit yours to a repo either.)

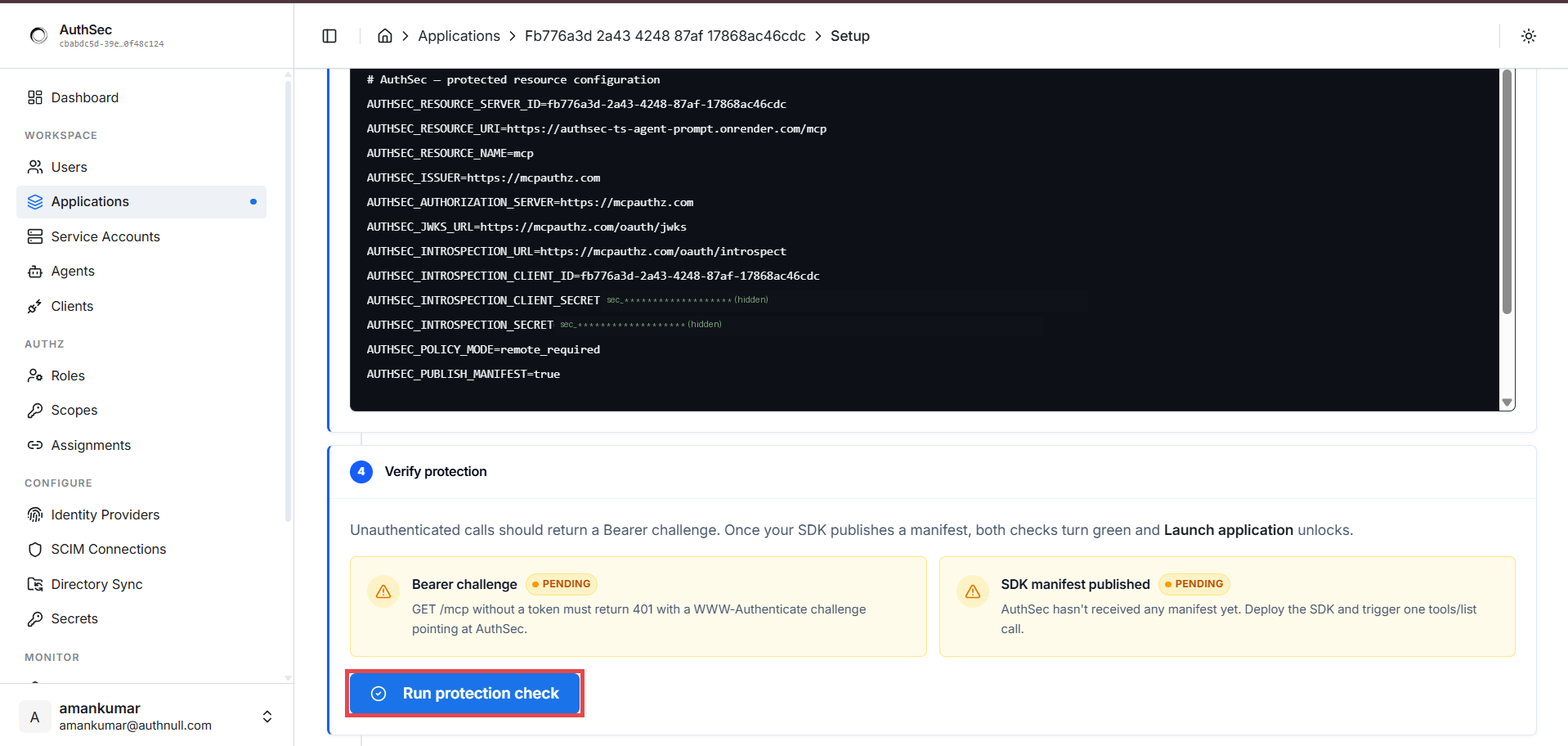

Below the config block, note the Verify protection panel: two checks — Bearer challenge (unauthenticated calls return 401) and SDK manifest published — both PENDING until your server is running. You'll come back and hit Run protection check in step 6; when both turn green, Launch application unlocks. Until then the application shows Not launched — expected.

Step 3 — Configure the environment

Paste the values from the Setup tab into a .env next to your server:

# Who issues tokens
AUTHSEC_ISSUER=https://mcpauthz.com
AUTHSEC_AUTHORIZATION_SERVER=https://mcpauthz.com
AUTHSEC_JWKS_URL=https://mcpauthz.com/oauth/jwks
AUTHSEC_INTROSPECTION_URL=https://mcpauthz.com/oauth/introspect

# From the Setup tab (unique per application)
AUTHSEC_RESOURCE_SERVER_ID=<resource-server-uuid>
AUTHSEC_INTROSPECTION_CLIENT_ID=<introspection-client-uuid>
AUTHSEC_INTROSPECTION_CLIENT_SECRET=<sec_...>

# Your server's identity — must match the Resource URI from step 2a
AUTHSEC_RESOURCE_URI=https://xxxx.ngrok-free.app/mcp
AUTHSEC_RESOURCE_NAME=my-mcp-server

# Recommended production posture
AUTHSEC_POLICY_MODE=remote_required          # fail CLOSED if policy unavailable
AUTHSEC_VALIDATION_MODE=jwt_and_introspect   # signature check + live revocation check
AUTHSEC_PUBLISH_MANIFEST=true                # keep tool inventory synced to the dashboard

Why remote_required? If your server can't fetch the tool→scope policy from AuthSec, it denies all tool calls rather than guessing. The alternative (fail open) means a network hiccup silently disables your security. Fail closed is the production default for a reason.

Why jwt_and_introspect? JWT signature alone can't detect a token that was revoked five minutes ago. Introspection asks AuthSec live. Belt and suspenders.

Step 4 — Write the server

This is a complete, runnable server — two tools, fully protected:

# server.py
import os
from fastapi import FastAPI
from mcp.server.fastmcp import FastMCP
from authsec_sdk import from_env, mount_mcp, ManifestTool
from dotenv import load_dotenv

mcp = FastMCP("my-server")

@mcp.tool()
def add_no(a: float, b: float) -> float:
    return a + b

@mcp.tool()
def multiply_no(a: float, b: float) -> float:
    return a * b

def my_tools():
    return [
        ManifestTool(
            name="add_no",
            description="Add two numbers",
            input_schema={
                "type": "object",
                "properties": {"a": {"type": "number"}, "b": {"type": "number"}},
                "required": ["a", "b"],
            },
        ),
        ManifestTool(
            name="multiply_no",
            description="Multiply two numbers",
            input_schema={
                "type": "object",
                "properties": {"a": {"type": "number"}, "b": {"type": "number"}},
                "required": ["a", "b"],
            },
        ),
    ]

load_dotenv()
cfg = from_env()                       # reads all AUTHSEC_* vars from step 3
cfg.tool_inventory_provider = my_tools # explicit manifest for the dashboard

app = FastAPI()
mount_mcp(app, "/mcp", mcp, cfg)       # ← the entire integration is this line

Notice what you did not write: no token parsing, no JWKS fetching, no scope checks, no metadata endpoint, no per-tool guards. The tools are plain functions.

tool_inventory_provider is optional. If you omit it, the SDK enumerates your tools automatically at startup by performing a synthetic MCP handshake against your own handler, so the schemas come straight from your @mcp.tool() type hints. Set it explicitly (as above) when you want a deterministic, hand-curated manifest — it's also what we use in our own E2E tests.

mount_mcp(app, path, handler, cfg) accepts three handler forms:

1. A FastMCP instance (shown above) — auto-detected and wrapped
2. A plain async request handler — async def handler(request) -> Response if you hand-rolled your MCP route
3. Any ASGI app — mount_mcp(app, "/mcp", wrap_asgi_handler(asgi_app), cfg)

Step 5 — Run and verify the protection

uvicorn server:app --host 0.0.0.0 --port 8000
# in another terminal, if local:
ngrok http 8000

Check 1 — the PRM document is served (agents discover your server through this):

curl https://xxxx.ngrok-free.app/.well-known/oauth-protected-resource/mcp

{
  "resource": "https://xxxx.ngrok-free.app/mcp",
  "authorization_servers": ["https://mcpauthz.com"],
  "scopes_supported": ["my_mcp:read", "my_mcp:tools:read", "..."]
}

Check 2 — unauthenticated calls are rejected:

curl -i -X POST https://xxxx.ngrok-free.app/mcp \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc":"2.0","method":"tools/list","id":1}'

HTTP/1.1 401 Unauthorized
WWW-Authenticate: Bearer resource_metadata=
  "https://xxxx.ngrok-free.app/.well-known/oauth-protected-resource/mcp"

The 401 isn't a dead end — the WWW-Authenticate header tells a well-behaved agent exactly where to go to authenticate. This is the MCP authorization spec working as designed.

Check 3 — your tools appeared in the dashboard. Because AUTHSEC_PUBLISH_MANIFEST=true, the SDK published your tool inventory at startup. Open the application's Tools tab — every tool is listed with its runtime access state (role-gated), an auto-assessed risk level, and the access label (scope) that gates it:

Use the filters (Needs review / Mapped / Public / Denied) to spot tools that aren't gated yet — unmapped tools stay denied. Refresh Tools re-imports after you add new @mcp.tool() functions and reboot.

Step 6 — Run the protection check

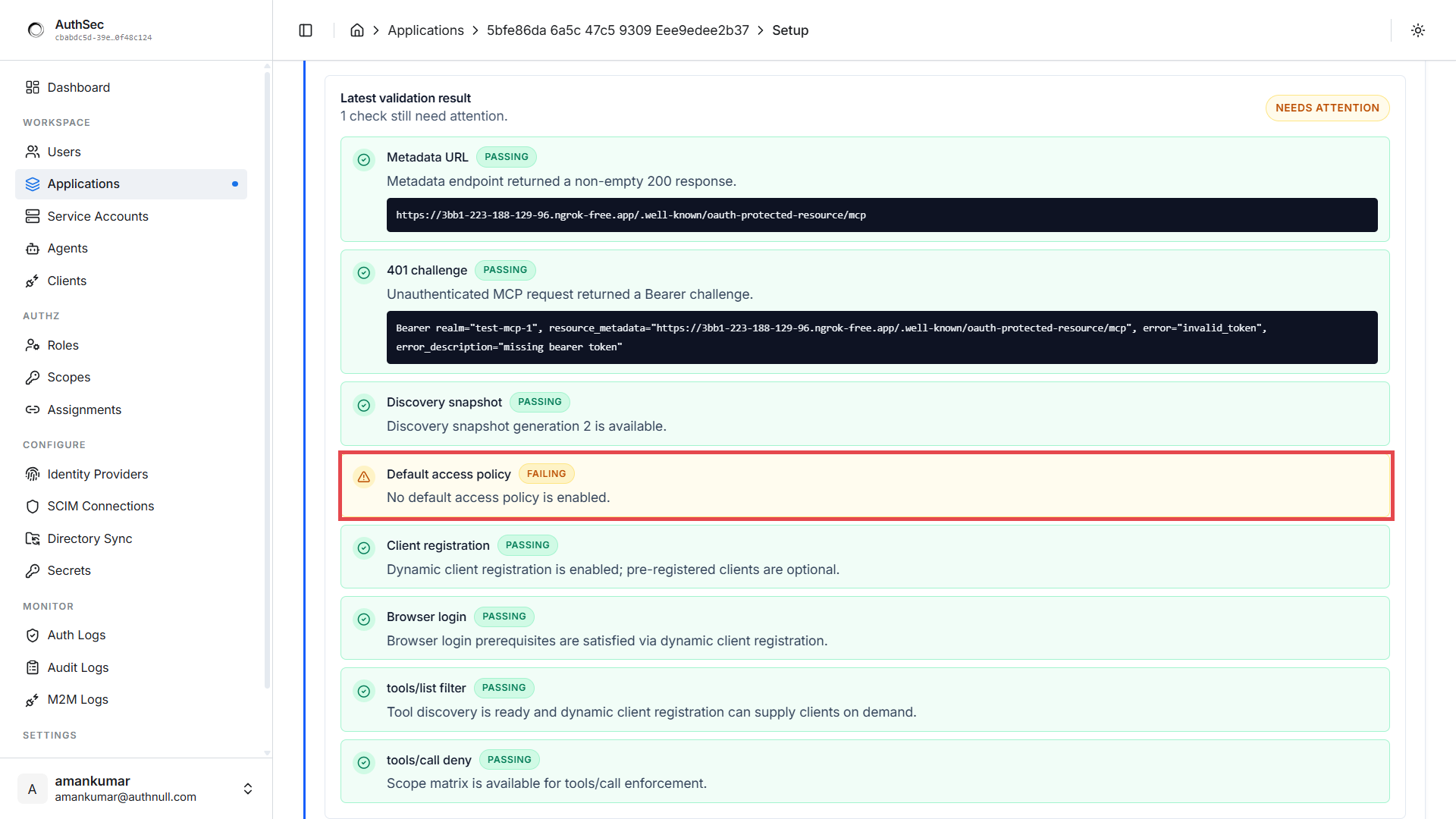

With the server running, go back to the Setup tab and click Run protection check. The dashboard probes your live server end-to-end and reports a full validation checklist:

What each check proves:

Check	What the dashboard verified
Metadata URL	Your PRM endpoint returns a non-empty 200
401 challenge	Unauthenticated MCP requests get a proper Bearer challenge
Discovery snapshot	Your server's discovery data was captured
Default access policy	A default role exists so callers get access on first login
Client registration	Agents have a way to register (pre-registered / DCR / CIMD)
Browser login	User-login prerequisites are satisfied
tools/list filter	Tool discovery is ready for scope-filtered listings
tools/call deny	The scope matrix is available for per-tool enforcement

On a fresh application, one check fails — Default access policy ("No default access policy is enabled"). Everything the SDK serves is green; what's missing is a dashboard-side decision: what does a brand-new caller get? You fix that manually in the next step — it's the only check the dashboard can't pass for you.

Step 7 — Fix the default access policy (Access tab)

Open the Access tab. The banner spells out the problem — "Default access: closed. New users authenticate but receive no role on first login." Fix it in three clicks:

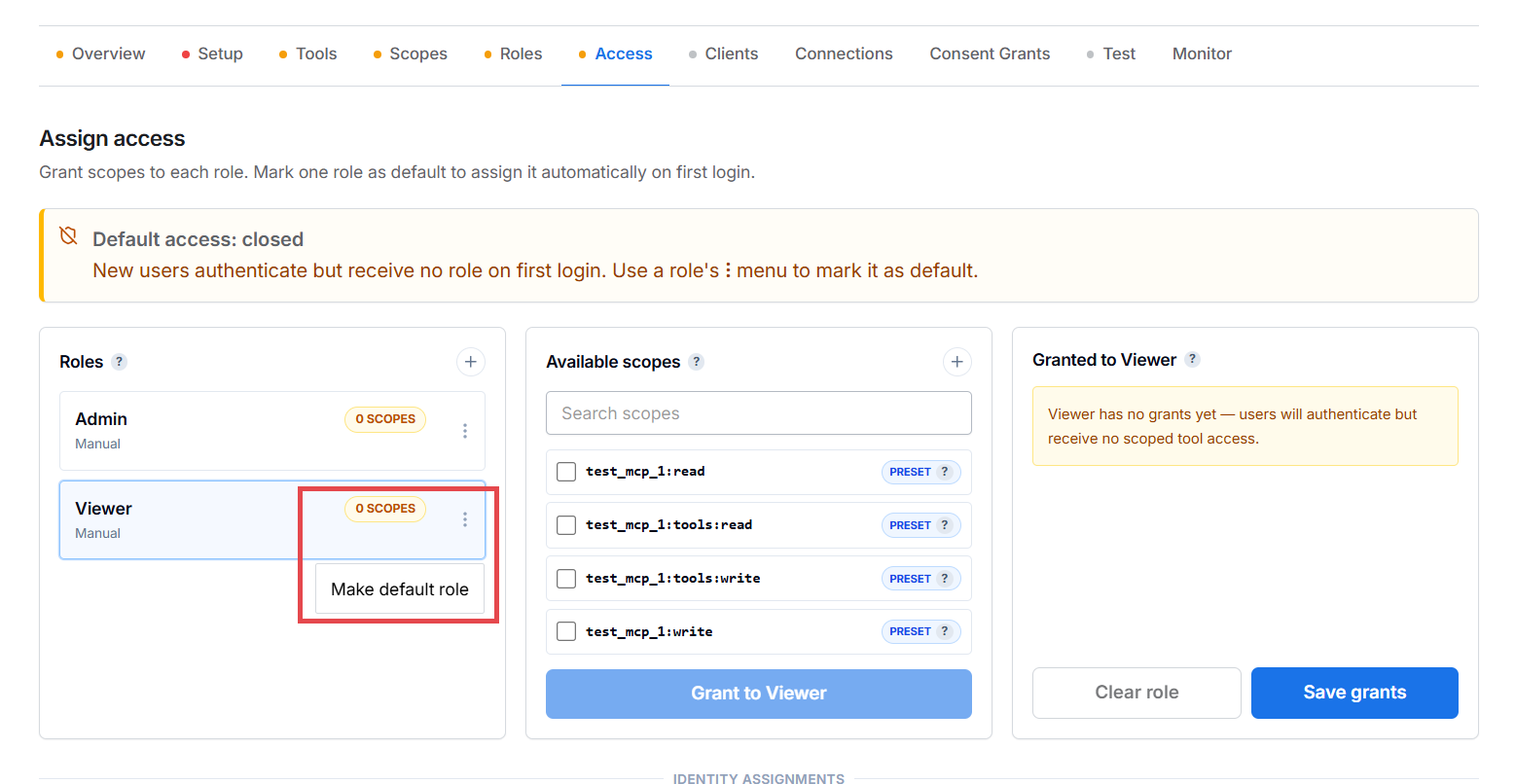

1. Make a role the default — open the role's ⋮ menu → Make default role (Viewer is the natural choice):

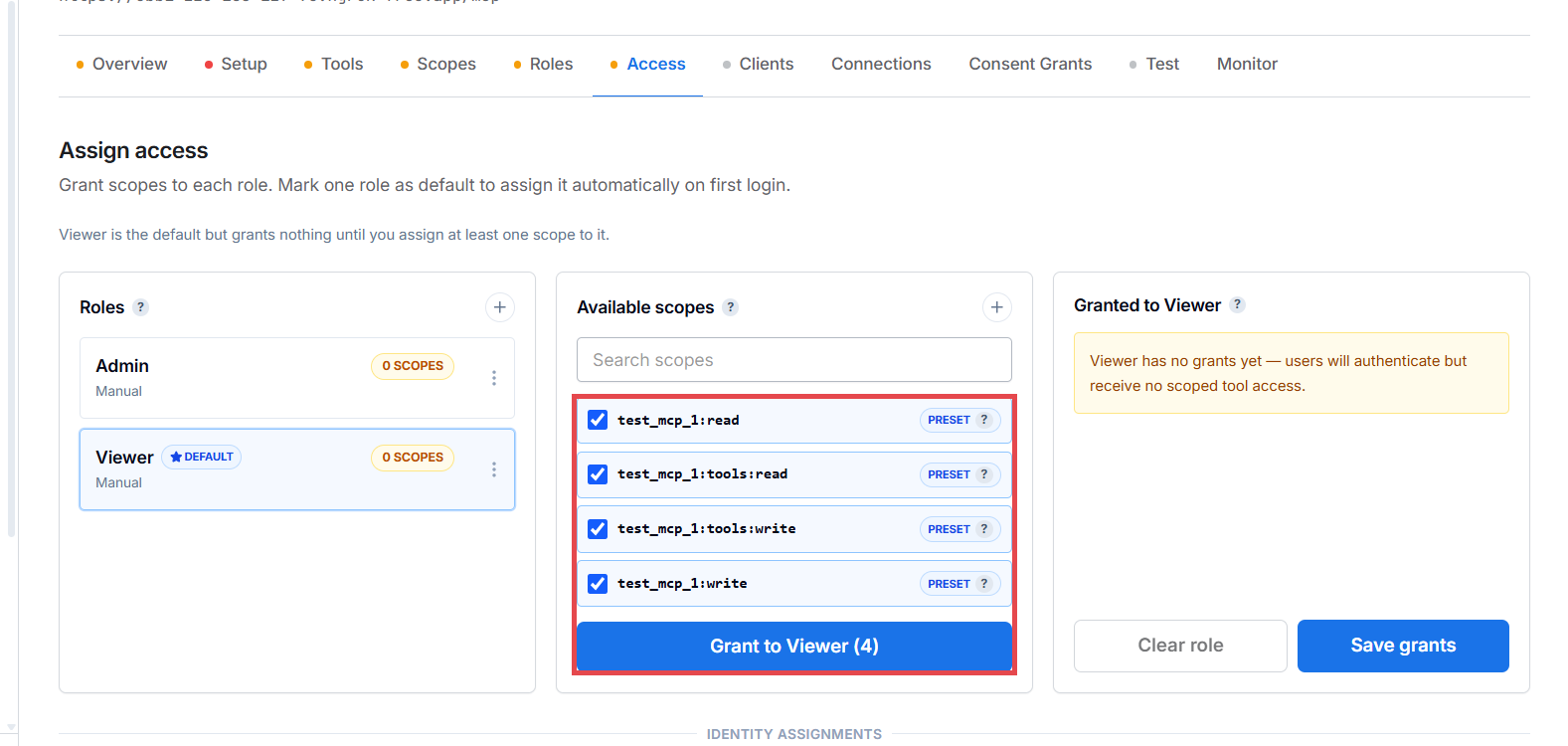

2. Grant scopes to that role — Viewer now shows the DEFAULT badge, but as the hint says: "Viewer is the default but grants nothing until you assign at least one scope to it." Tick the scopes it should carry and click Grant to Viewer:

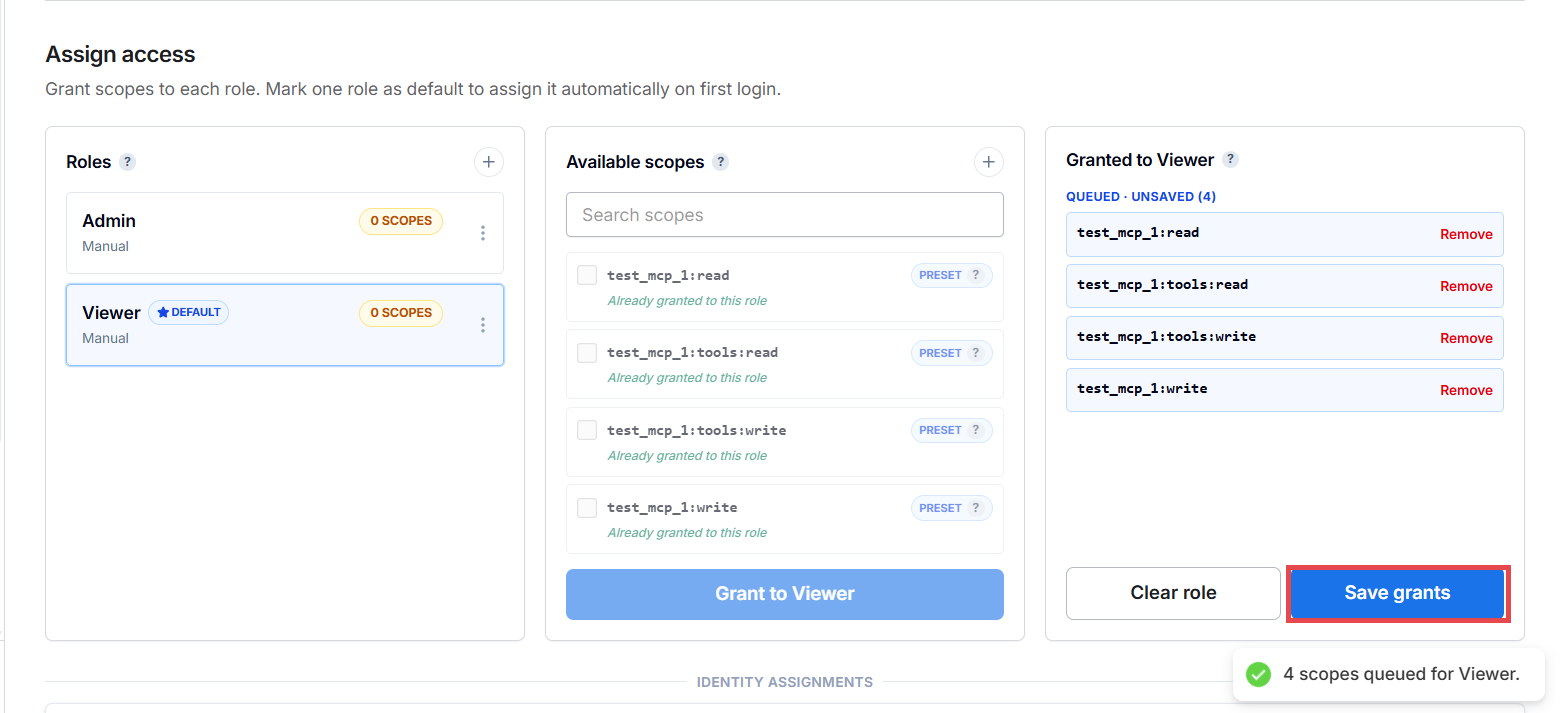

3. Save grants — the right panel shows the queued scopes (QUEUED · UNSAVED); nothing is live until you click Save grants:

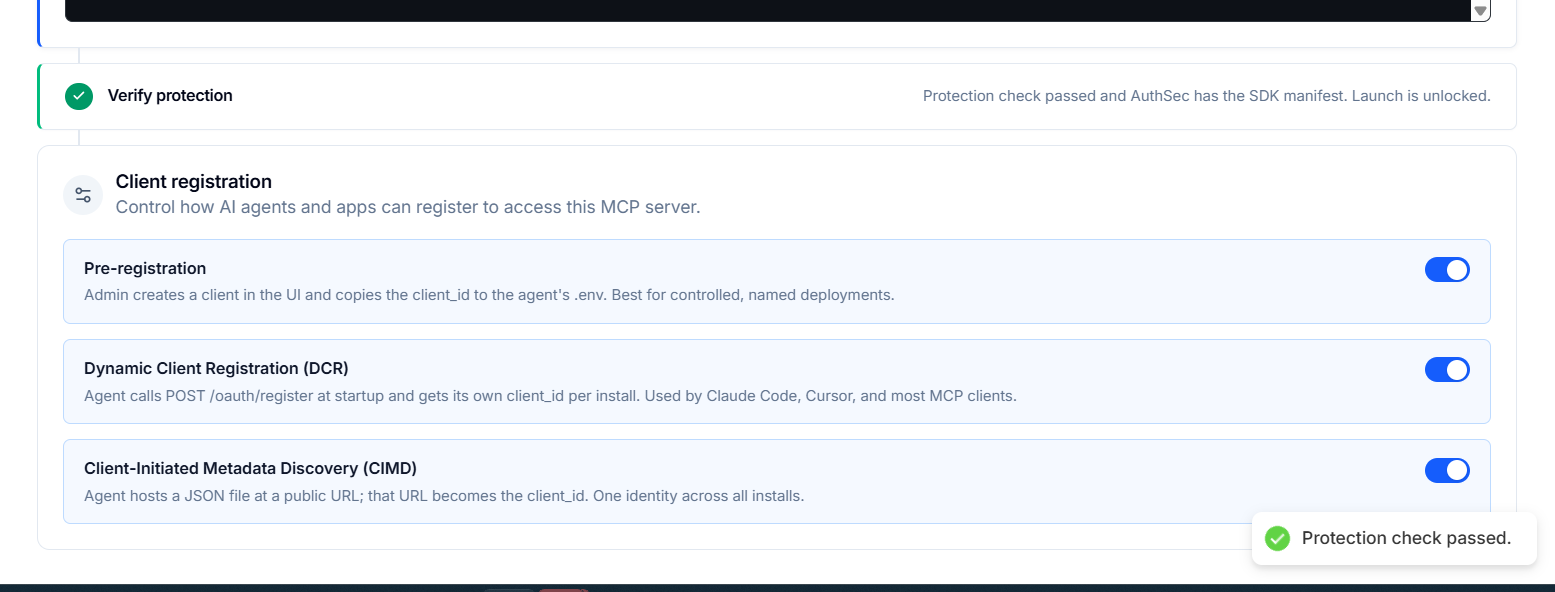

Now re-run the protection check on the Setup tab — all checks pass and launch is unlocked:

Also on this page — Client registration. Three toggles control how agents may register to call this server: Pre-registration (admin creates the client in the UI, copies the client_id into the agent's .env — what guides 2 and 3 use), DCR (agents self-register via POST /oauth/register — how Claude Code and Cursor connect), and CIMD (the agent's identity is a JSON file it hosts at a public URL). Leave all three on unless you want to restrict registration styles.

Step 8 — Map tools to access labels (Tools tab)

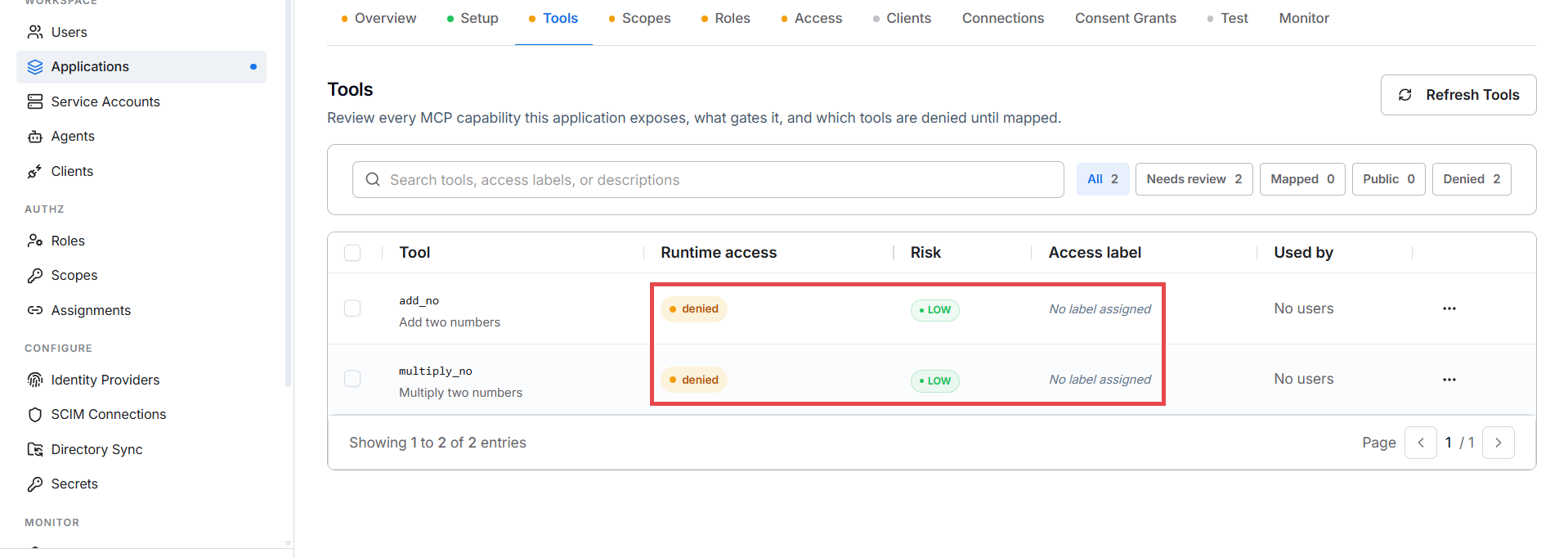

Open the Tools tab. Freshly imported tools show denied runtime access and "No label assigned" — the fail-closed default:

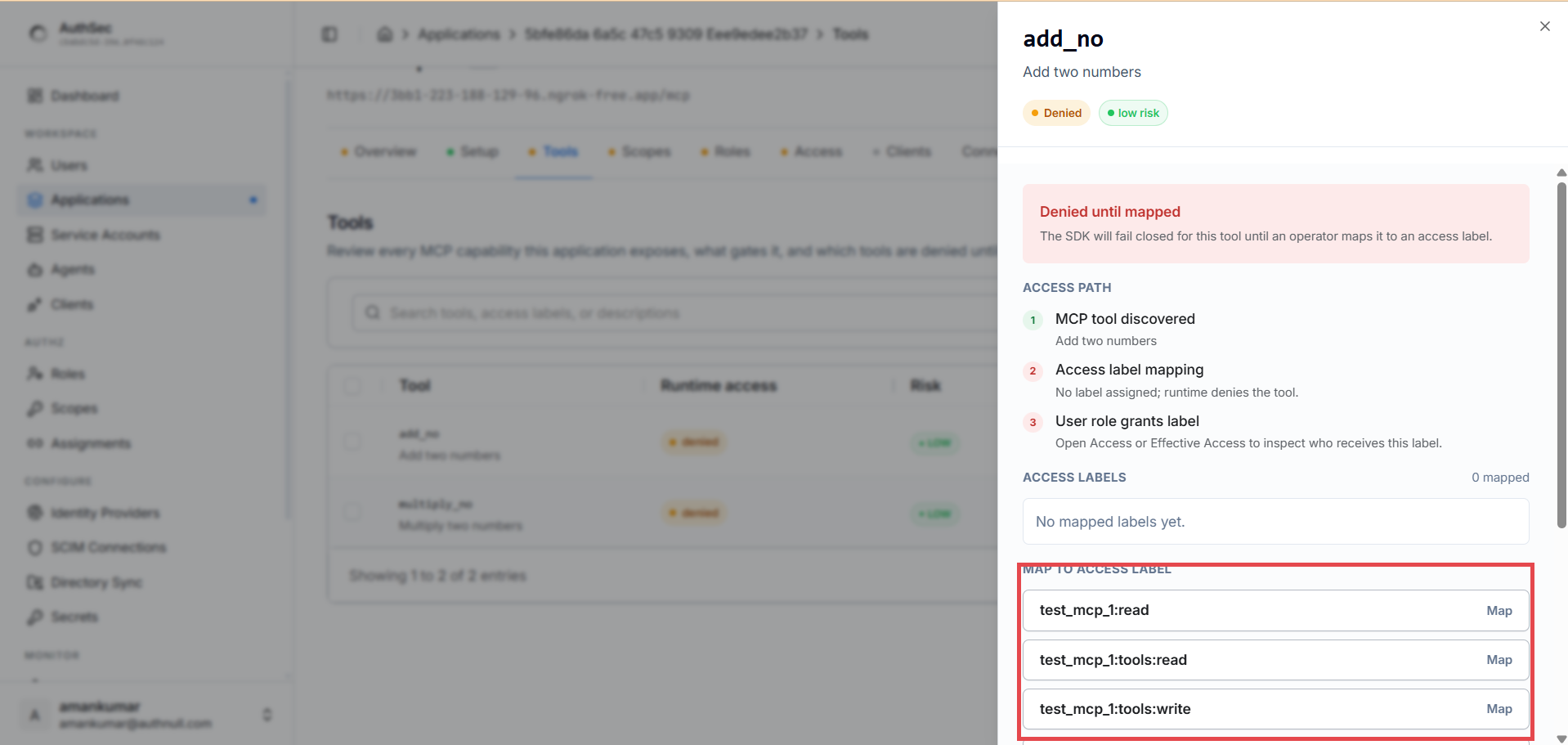

Click a tool to open its detail panel. It says exactly what's wrong — "Denied until mapped: the SDK will fail closed for this tool until an operator maps it to an access label" — and shows the three-step access path (tool discovered → label mapping → user role grants label). Click Map on the right access label:

Map every tool you want callable, e.g.:

Tool	Access label
add_no	test_mcp_1:tools:read
multiply_no	test_mcp_1:tools:write

Anything left unmapped simply stays denied — safe by default.

Step 9 — Launch 🚀

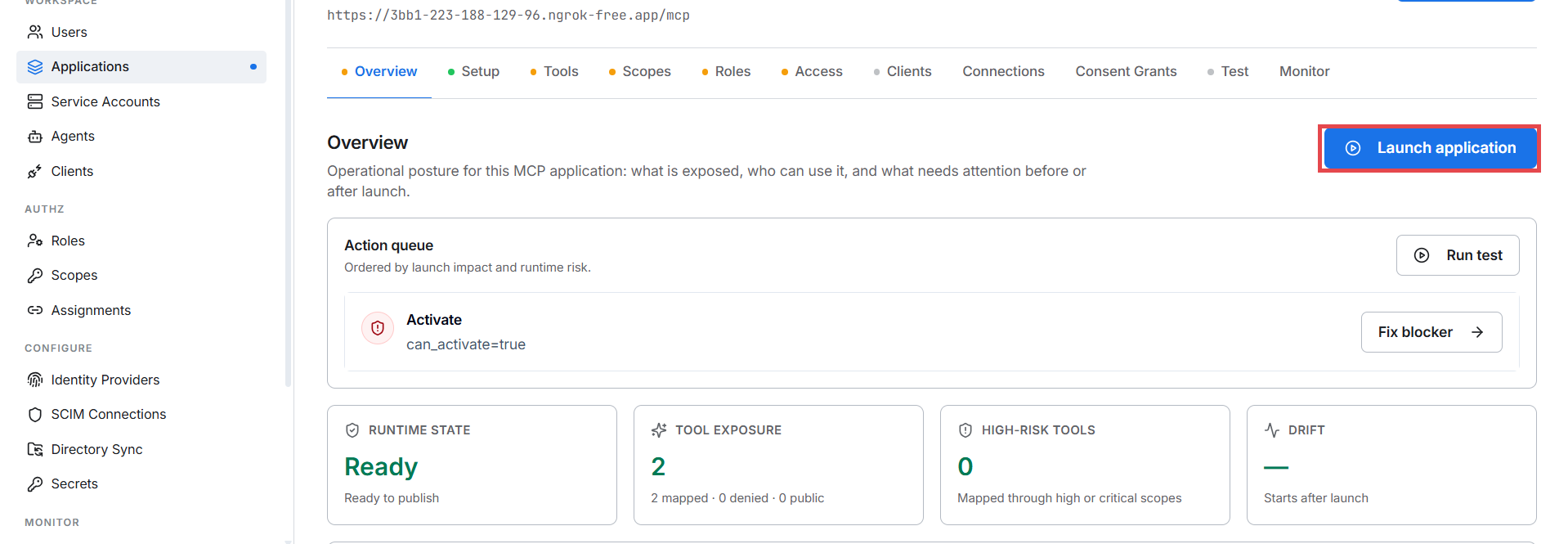

Go to the Overview tab. Runtime state reads Ready, tool exposure shows your mapped count, and the Launch application button is active:

Click Launch application. The status chip flips to Launched — your MCP server is now live and protected.

Who gets the roles you configured — service accounts, agents, users — is the subject of guides 2 and 3.

Your running server picks up policy changes within ~30 seconds (it polls the scope matrix with a 30s cache) — no restart, no redeploy.

Step 10 — Full-circle test

Use the Run test button on the Overview tab (or the Test tab), or curl with a real agent token (from guide 2 or 3):

curl -X POST https://xxxx.ngrok-free.app/mcp \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -H "Accept: application/json, text/event-stream" \
  -d '{"jsonrpc":"2.0","method":"tools/call","id":2,
       "params":{"name":"add_no","arguments":{"a":2,"b":3}}}'

• Token has my_mcp:tools:read → add_no runs, returns 5 ✅
• Same token calls multiply_no (needs :write) → 403 insufficient_scope ✅
• tools/list responses are also filtered — callers only see the tools their scopes allow.

The Monitor tab shows the requests as they land — token subject, tool, allow/deny decision.

---

Behind the scenes (optional reading)

Token validation (runtime/validator.py) — in jwt_and_introspect mode each request's token is (1) signature-verified against AuthSec's JWKS, checking iss, aud, exp, and (2) introspected live so revoked tokens die immediately. Verification runs in a worker thread — your event loop never blocks.

Scope matrix (runtime/scope_matrix.py) — the tool→scope mapping from step 8 is fetched from AuthSec and cached for 30s. That's the "propagates in ~30 seconds" guarantee.

Manifest (runtime/manifest.py) — at startup the SDK performs a synthetic MCP handshake against your own handler (initialize → tools/list) and PUTs the result to AuthSec. Your @mcp.tool() type hints are the single source of truth for schemas. Want a hand-curated manifest instead? Set cfg.tool_inventory_provider = my_tools returning a list of ManifestTool.

PRM (runtime/metadata.py) — the RFC 9728 document from check 1, with scopes_supported synced live from the dashboard.

---

Troubleshooting

Symptom	Cause	Fix
Every tool call returns 403, policy state needs_setup	Vocabulary exists but tools aren't mapped / no default access	Steps 7–9 — default role + grants, map tools, launch
Protection check: Default access policy FAILING	No role is marked as default	Step 7 — role ⋮ menu → Make default role, grant scopes, Save grants
A tool stays denied after launch	"No label assigned" — unmapped tools fail closed	Step 8 — open the tool, Map an access label
401 even with a fresh token	AUTHSEC_RESOURCE_URI doesn't exactly match the URL agents call (scheme/host/path)	Make them identical; re-check after ngrok URL changes
Tools don't appear in the Tools tab	AUTHSEC_PUBLISH_MANIFEST not true, or the startup manifest PUT failed	Check server logs at boot; verify introspection credentials
Scope changes not taking effect	Within the 30s cache window	Wait 30s; if still stale, check the server can reach mcpauthz.com
Everything breaks when AuthSec is briefly unreachable	remote_required failing closed — by design	For dev only, relax AUTHSEC_POLICY_MODE; keep fail-closed in production
ngrok URL changed after restart	Free ngrok URLs rotate	Update AUTHSEC_RESOURCE_URI, the application's base URL in the dashboard, and restart
Lost the introspection secret	It's shown once at creation	Rotate it from the application's Setup tab

---
